1/24-1/25 Compression Fitting  (8pc) Pick Your Size

1/24-1/25 Compression Fitting (8pc) Pick Your Size

DTM-3021

DETAIL MASTER

  • $9.99
    Unit price per
Shipping calculated at checkout.

3 Available

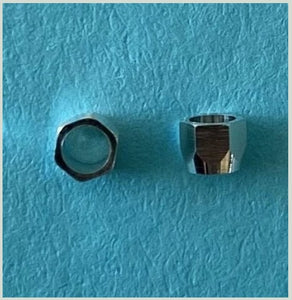

This Compression Fitting for recreating fuel lines, has 8 per pack.

See chart below for compatible lines and hoses:

Line/hole Dia Detail Master Line Matching Fitting
0.018 N/A N/A
0.020 DM-1301 DM-3021,3031,3041,3091
0.025 DM-1302 DM-3022,3032,3042,3092
0.035 DM-1303 DM-3023,3033,3043,3093
0.045 DM-1304 DM-3024,3034,3044,3094
0.060 DM-1305 DM-3025,3035,3045,3095
0.080 DM-1306 DM-3026,3036,3046,3096
0.100 DM-1307 DM-3027,3037,3047,3097



Line/hole Dia 1:24 Scale
0.018 7/16" Fuel
0.020 1/2" Fuel, PCV
0.025 3/4" Heater, Oil Line
0.035 1" Heater, Oil Line
0.045 1.25" Cooling, Oil Line
0.060 1.5" Cooling
0.080 2" Cooling
0.100 2.5" Cooling



Line/hole Dia 1:16 Scale
0.018 1/4" Full Scale Brake, Vac
0.020 3/8" Full Scale Fuel, Brake
0.025 1/2" Full Scale Fuel, Vent
0.035 5/8" Full Scale Heater, Oil Line
0.045 3/4" Full Scale Heater, Oil Line
0.060 1" Full Scale Cooling, Oil Line
0.080 1.25" Full Scale Cooling
0.100 1.5" Full Scale Cooling



Line/hole Dia 1:12 Scale
0.018 3/16" Full Scale Gauge
0.020 1/4" Full Scale Brake, Vac
0.025 3/8" Full Scale Fuel, Brake
0.035 1/2" Full Scale Fuel, Vent
0.045 5/8" Full Scale Heater, Oil Line
0.060 3/4" Full Scale Heater, Oil Line
0.080 1" Full Scale Cooling, Oil Line
0.100 1.25" Full Scale Cooling



AN Equivalent Line Size Aplication
AN3 3/16" Gauge
AN4 1/4" Brake, Vac
AN5 5/16" Fuel, Brake
AN6 3/8" Fuel, Vent
AN7 7/16" Fuel, Vent
AN8 1/2" Fuel, Oil
AN12 3/4" Heater, Oil Line
AN16 1" Heater, Oil Line
AN20 1.25" Cooling, Oil Line
AN24 1.5" Cooling
AN32 2" Cooling
AN40 2.5" Cooling
Note: AN1 is equivalent to 1/16"
